How to Install Wainscoting: Height Chart and Panel Picks

Set the top of your wainscoting at one-third of the wall height, measured to the top of the cap: about 32 inches on an 8-foot wall and 36 inches on a 9-foot wall. Glue ¼” or ⅜” panels over the drywall, but drive the nails into studs or blocking, because the drywall itself won’t hold them. Below is the height chart, the sheet math that decides your material cost, the panel maker’s nailing schedule, and the two code rules most DIY installs miss.

Quick answer

• Height: one-third of wall height, cap included. 32″ on 8′ walls, 36″ on 9′ walls.
• Panel: ¼” or ⅜” plywood beadboard over drywall.
• Fastening: construction adhesive plus 2″ (6d) finish or ring-shank nails into studs. 6″ apart at edges, 12″ in the field.
• Don’t skip: box extenders on every outlet, and no wood wainscot inside a tub or shower with a showerhead.

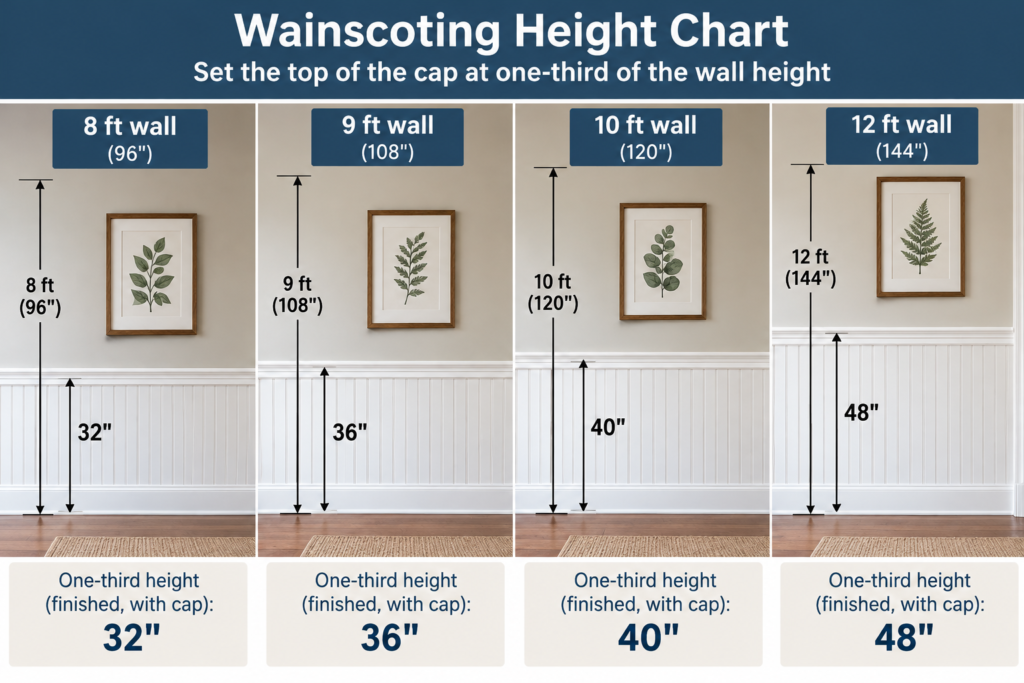

Wainscoting Height Chart (With Sheet Yield)

The one-third rule is a design convention, not a code requirement. Bob Vila’s guidance measures it to the top of the cap and suggests going shorter when you’re unsure. The column most guides leave out is the last one: how much wall one 4×8 sheet covers at each height.

Wall height	One-third target (finished, with cap)	Panel cut height (example)*	Pieces per 4×8 sheet	Wall covered per sheet
8 ft (96″)	32″	29¼”	3	12 linear ft
9 ft (108″)	36″	33¼”	2	8 linear ft
10 ft (120″)	40″	37¼”	2	8 linear ft
12 ft (144″)	48″	45¼”	2	8 linear ft

*Panel cut = target height − how far your cap rises above the panel’s top edge − ¼” bottom gap. The example assumes a cap that rises 2½” above the panel.

The panel’s top edge tucks into or behind the cap, so the ¼” top gap the panel maker calls for is hidden there. Don’t subtract it a second time. Cap profiles vary, so dry-fit an offcut of your cap on a scrap of panel, measure how far it rises, and use that number.

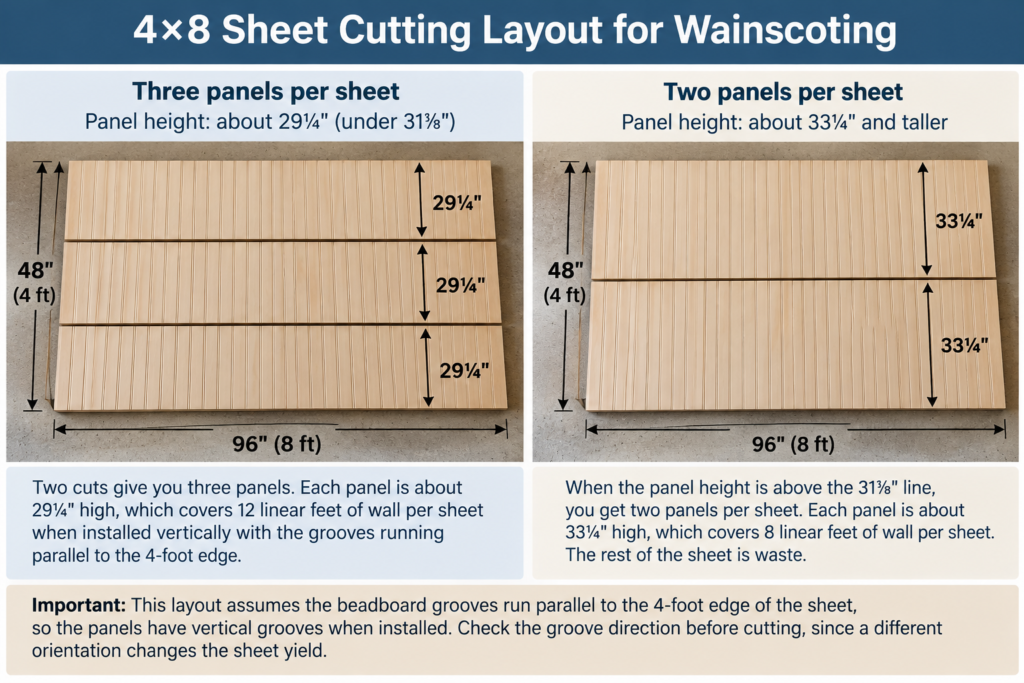

💸 Cost difference: the 31⅞-inch line

Getting three panels from an 8-foot sheet takes two saw cuts. With a standard ⅛” blade, that leaves about 31⅞” per panel: (96″ − ¼”) ÷ 3. Treat that as approximate. A thicker blade, or factory ends you have to trim square, lowers it.

It also assumes the beads run the 8-foot length, so crosscut pieces stand with vertical beads. Check your sheet before you plan the cuts. Above that line you get two panels per sheet and waste the rest.

Take a 12×14 room with one 3-foot door, which leaves about 49 linear feet of wall:

• Panels under 31⅞”: 49 ÷ 12 = 5 sheets
• Panels around 33″: 49 ÷ 8 = 7 sheets

That’s 40% more material for about 2 inches of height. On a 9-foot wall, keeping the panel under the line still lands the finished height around 34″, close to one-third, at the lower sheet count.

How to Read the Chart for Your Room

Three things move the number:

• Windows. If the one-third line lands near a sill, line the cap up with the sill or stop a few inches below it. Don’t leave a sliver of wall between them.
• Bathrooms. Fixtures override the rule. Bob Vila suggests about 40″, roughly 4″ above a vanity backsplash, or stopping at the bottom of the medicine cabinet.
• Tall or lofted walls. One-third of a 15-foot wall is 5 feet, which often looks heavy. 36″–48″ usually sits better.

Which Panel to Use: Decision Chart

Panel	Use it in	Skip it in	Note
¼” plywood beadboard (birch or pine)	Living, dining, halls, bedrooms	Tub/shower walls	Cheapest real-wood look; glue and nail to studs
¼” luan infill with ¾” plywood strip frames	Framed/flat-panel look	Humid rooms	More cutting, but the most custom look
MDF beadboard	Dry rooms, paint-grade only	Splash zones, laundry, basements	Check the maker’s moisture limits before buying
PVC beadboard	Bathrooms (outside the shower), mudrooms, laundry	—	Most moisture-tolerant option here

For a horizontal-board look instead of beads, see our shiplap wall guide. For a taller, bolder grid, see our board and batten guide.

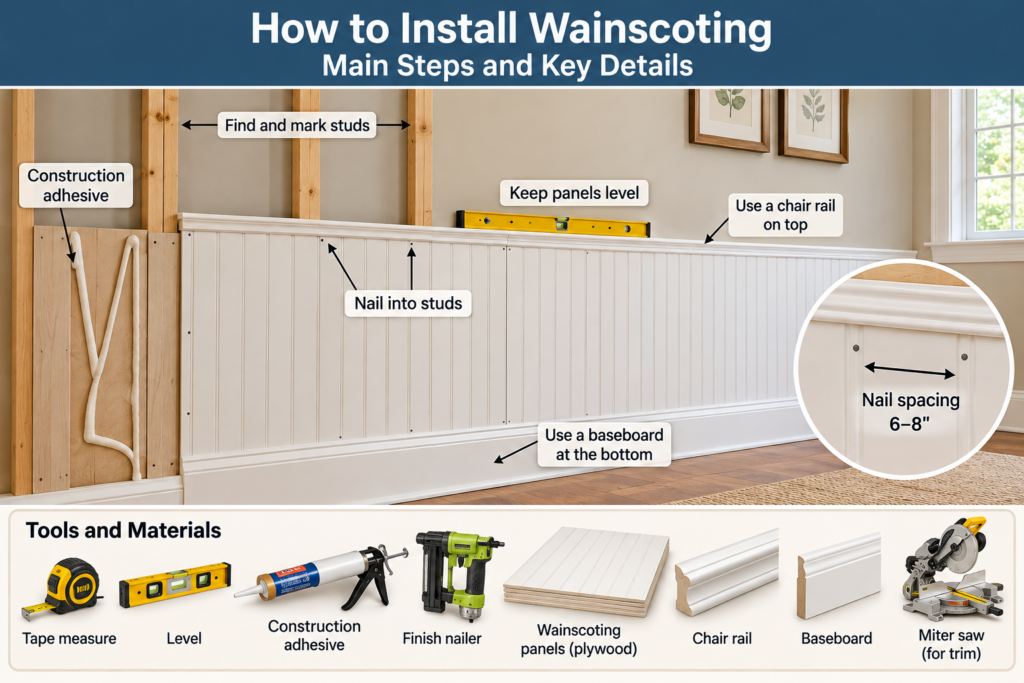

How to Install Wainscoting Step by Step

The fastening details below come from Patriot Timber Products’ installation recommendations for its RevBead and PatriotBead plywood beadboard. Other brands vary, so read the instructions that come with your panels.

1. Acclimate the panels for at least 48 hours in the room. Stack them flat with spacers so air reaches both sides.
2. Find the studs and snap a level line at your panel cut height. Mark the studs just above the line, where the cap will hide the marks.
3. Start in the corner, but plumb the leading edge. Fit the first panel loosely into the starting corner, with the ¼” top and bottom gaps, and make sure its leading edge lands on a stud center. Every later panel lines up off that edge. Corners are often out of plumb, so hold a level on the leading edge. If the corner leans, scribe and trim the corner side of the first panel so the leading edge stays plumb.
4. Cut with the correct face orientation. With a handheld circular saw, put the finished face down. With a table saw, put it face up. Use a fine-tooth blade and support the panel on both sides of the cut to reduce splintering. For outlet cutouts in the middle of a panel, drill starter holes in the corners before cutting. Using PatriotBead or RevBead? Patriot’s instructions say to mark and cut all of its panels from the back, so follow that for those products.
5. Leave gaps. ¼” at top and bottom, ⅛” around cutouts, and a light butt (about 1/32″) between panels. The base, cap and cover plates hide them.
6. Glue and nail. Use construction adhesive plus minimum 2″ (6d) finish or ring-shank nails, 6″ apart at edges and ends and 12″ apart in the field. Every nail goes into a stud or blocking. At seams, nail through the shiplap edge that sits flat against the wall, not the overlapping edge of the next panel. Patriot states plainly that drywall is not a backing and won’t hold fasteners. See nails vs. screws for plywood for why nails into framing work here.
7. Bring every box flush with a listed box extender. See the warning below.
8. Finish the edges. Reinstall the base, add the cap, fill the nail holes, then prime and paint.

🧪 Real test: the Flex & Look check

Patriot tells installers to inspect every sheet before cutting:

1. Stand the panel on its 4′ edge.
2. Pull the top edge down about 3″ while pressing the face forward about 3″.
3. While it’s flexed, look for bubbles or creases on the face.

Any sheet that shows them goes back to the store, not on the wall.

Best Tools and Materials for the Job

• Outlet box extenders. One for every outlet and switch inside the paneled zone. Required, not optional. Check price on Amazon
• Paneling or construction adhesive. Holds the panel flat between nails. Check price on Amazon
• 16-gauge finish nailer. Drives the 2″ nails the panel maker specifies. Check price on Amazon
• Stud finder. Every nail has to land in framing. Check price on Amazon
• Fine-tooth plywood saw blade. Cuts cleaner edges with less splintering. Check price on Amazon
• PVC beadboard panels. For bathrooms and laundry rooms, outside the shower. Check price on Amazon

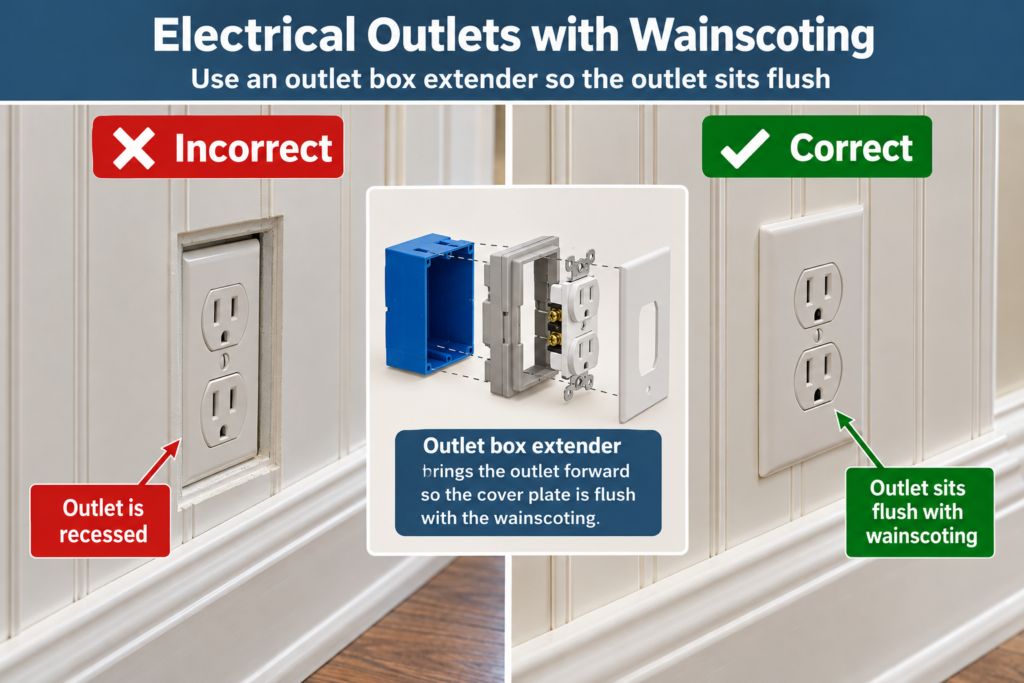

⚠️ Warning: Outlets and Wet Walls

Outlets. National Electrical Code 314.20 lets a box sit up to ¼” behind a noncombustible surface like drywall. On a wood or other combustible surface, the box has to be flush or stick out. Add ¼” of beadboard over drywall and every box in that zone is now recessed behind wood. A listed box extender fixes it; washers stacked behind the device don’t.

Tubs and showers. IRC R307.2 requires walls above tubs with showerheads, and inside shower compartments, to have a nonabsorbent surface up to at least 6 feet above the floor. Wood and MDF wainscot don’t qualify there. Use tile or a shower wall system, and start the wainscot outside that zone.

Your state or city may adopt a different code edition or local amendments. Check with your building department before you start, especially for bathroom walls.

Common Mistakes (And What They Cost You)

• ❌ Nailing only into drywall. The panels pull away as the adhesive ages, because drywall can’t hold the nails.
• ❌ Leaving outlets recessed. It’s an NEC 314.20 violation, and it can fail inspection or a home sale.
• 😬 Regret: wood wainscot behind a shower tub. It doesn’t meet IRC R307.2, and you’ll rip it out when it swells.
• ❌ Skipping the 48-hour acclimation. Panels shift after install, and seams and gaps open.
• 💸 Picking your height without checking sheet yield. Going just over the 31⅞” panel line can mean buying 40% or more extra sheets.
• ❌ Trusting the corner to be plumb. If the first panel’s leading edge follows a leaning corner, every seam after it leans too, and the error shows most at the far end of the wall.

When Not to Use Plywood Wainscoting

• Inside tub/shower zones with a showerhead. IRC R307.2 rules it out.
• Basement walls with active moisture. Fix the water first. Our basement wall systems comparison covers what holds up below grade.
• Wavy plaster walls. Thin ¼” panels show every bump. Shim or fur the wall first, or use thicker panels.
• Fire rating. IRC R302.9.1 caps wall finishes at a flame spread index of 200. Chair rails and baseboards are exempt as trim, but panels are not, so check the ASTM E84 rating on the panel’s spec sheet.

FAQ

How high should wainscoting be?
About one-third of the wall height, measured to the top of the cap. That’s 32″ on 8′ walls and 36″ on 9′ walls. Bathrooms often run about 40″ to clear the vanity backsplash.

Can you install wainscoting directly over drywall?
Yes. Glue the panels to the drywall, but drive the nails into studs or blocking. The panel maker states that drywall alone won’t hold fasteners.

What thickness plywood is best for wainscoting?
¼” or ⅜” over existing drywall. Framed styles use ¾” plywood strips for the frames with ¼” infill panels.

Which side of the panel should face up when cutting?
It depends on the saw. With a handheld circular saw, cut with the finished face down. With a table saw, cut with it face up. Patriot’s beadboard is the exception: its instructions say to mark and cut from the back.

Do I have to move my outlets?
You don’t have to move them, but you do have to bring them flush. NEC 314.20 requires boxes in a combustible wood surface to be flush with it or project from it, so fit a listed box extender.

Can you put wainscoting in a bathroom?
Yes, outside the tub and shower zone. Walls above a tub with a showerhead need a nonabsorbent surface to at least 6 feet under IRC R307.2. Use PVC or sealed panels for the rest of the room, and check your local code.

Bottom Line

Run wainscoting at one-third of the wall height. Keep the panel under about 31⅞” if you want three pieces per sheet. Glue it, nail it into framing, and extend every box flush. Keep wood out of the shower zone and the install will outlast the paint on it.
